Introduction to Sandcasting: History and Evolution

Sandcasting is one of the oldest and most versatile metal casting processes, with origins tracing back over 3,000 years to ancient civilizations such as China, Egypt, and Mesopotamia. The technique involves creating a mold from sand, into which molten metal is poured to form complex shapes. Early sandcasting methods were rudimentary, relying on natural sand and simple wooden patterns, but they enabled the production of tools, weapons, and art objects that were crucial to societal development. Over centuries, the process evolved alongside advances in metallurgy and engineering, becoming a cornerstone of the Industrial Revolution. During this period, sandcasting facilitated mass production of machine parts, engines, and infrastructure components, significantly accelerating industrial growth.

Modern sandcasting incorporates refined sand mixtures, binders, and sophisticated pattern-making techniques, allowing for greater precision and repeatability. Innovations such as green sand and resin-bonded sand molds have improved surface finish and dimensional accuracy, while computer-aided design (CAD) and simulation tools have optimized mold design and metal flow. Despite the advent of alternative casting methods like die casting and investment casting, sandcasting remains widely used due to its adaptability, cost-effectiveness, and ability to produce large or intricate components in a variety of metals. Today, industries ranging from automotive to aerospace continue to rely on sandcasting for both prototyping and high-volume production, underscoring its enduring relevance in modern manufacturing American Foundry Society Encyclopædia Britannica.

Core Principles: How Sandcasting Works

Sandcasting operates on a set of core principles that enable the creation of complex metal parts using relatively simple materials and equipment. At its heart, the process involves forming a cavity in a specially prepared sand mold, into which molten metal is poured. The sand mold is typically created by packing sand—often mixed with a binder such as clay—around a pattern that replicates the desired shape of the final object. Once the pattern is removed, it leaves behind a negative impression, or mold cavity, in the sand. This cavity is then filled with molten metal, which solidifies to form the casting.

A key principle of sandcasting is the use of a two-part mold: the cope (top half) and the drag (bottom half). These halves are aligned precisely to ensure the final casting’s dimensional accuracy. Additional features, such as cores, can be inserted into the mold to create internal cavities or complex geometries within the casting. The sand’s permeability is crucial, as it allows gases generated during pouring to escape, preventing defects in the finished product.

After the metal has cooled and solidified, the sand mold is broken apart to retrieve the casting. The process is highly versatile, accommodating a wide range of metals and alloys, and is especially valued for its ability to produce both small and large components with intricate details. Sandcasting’s fundamental principles have remained largely unchanged for centuries, making it a cornerstone of modern and historical metalworking industries American Foundry Society.

Materials Used in Sandcasting

The selection of materials in sandcasting is critical to the quality and properties of the final cast product. The primary materials include the casting metal, the sand used for the mold, and various additives and binders. Common casting metals are ferrous alloys such as cast iron and steel, as well as non-ferrous metals like aluminum, brass, and bronze. The choice of metal depends on the desired mechanical properties, melting temperature, and application of the finished part.

The sand used in sandcasting is typically silica sand due to its high melting point and availability. However, other sands such as olivine, chromite, and zircon may be used for specialized applications requiring higher refractoriness or specific surface finishes. The sand must be mixed with a binder to maintain the shape of the mold; traditional binders include clay (such as bentonite), while modern processes may use chemical binders like sodium silicate or organic resins to improve mold strength and surface quality.

Additives are often incorporated to enhance specific properties of the sand mold, such as coal dust for improved surface finish or iron oxide to reduce casting defects. The correct combination of sand, binder, and additives is essential for producing molds that can withstand the thermal and mechanical stresses of casting while allowing for easy removal of the final product. The ongoing development of new materials and additives continues to expand the capabilities and applications of sandcasting in modern manufacturing American Foundry Society, Encyclopaedia Britannica.

Step-by-Step Sandcasting Process

The sandcasting process involves several precise steps to transform a design into a finished metal part. First, a pattern—typically made from wood, metal, or plastic—is created to replicate the shape of the desired casting. This pattern is placed inside a molding box, and special foundry sand mixed with a binder is packed tightly around it to form the mold. The mold is usually made in two halves (cope and drag) to allow for easy removal of the pattern and subsequent assembly of the mold halves. After the sand is compacted, the pattern is carefully withdrawn, leaving a cavity in the shape of the part.

Next, a gating system is carved or formed in the sand to direct molten metal into the mold cavity. Cores, made from sand and binders, may be inserted to create internal features or hollow sections in the casting. The mold halves are then assembled, and molten metal—such as aluminum, iron, or bronze—is poured into the mold through the gating system. Once the metal cools and solidifies, the sand mold is broken apart to reveal the rough casting.

The final steps involve removing excess metal (such as sprues and risers), cleaning the casting, and performing any necessary finishing operations like grinding or machining. This process is valued for its versatility, cost-effectiveness, and ability to produce complex shapes in a wide range of metals. For a detailed visual guide, refer to American Foundry Society and Engineering Choice.

Advantages and Limitations of Sandcasting

Sandcasting offers several notable advantages that make it a widely used metal casting process in manufacturing. One of its primary benefits is versatility; sandcasting can accommodate a wide range of metal alloys, including ferrous and non-ferrous materials. The process is also highly adaptable to complex geometries and large components, making it suitable for both prototyping and low-to-medium volume production. Additionally, the initial tooling and setup costs are relatively low compared to other casting methods, such as die casting or investment casting. This cost-effectiveness, combined with the ability to recycle and reuse sand, contributes to its economic and environmental appeal Tata Technologies.

However, sandcasting is not without its limitations. The surface finish and dimensional accuracy of sandcast parts are generally inferior to those produced by more precise methods like investment casting. This often necessitates additional machining or finishing operations, which can increase production time and costs. Furthermore, the process is less suitable for producing thin-walled or highly detailed components, as the sand mold may not capture fine features accurately. Porosity and inclusions are also more common in sandcast parts, potentially affecting mechanical properties and performance Engineering Notes. Despite these drawbacks, sandcasting remains a preferred choice for many applications due to its flexibility, scalability, and cost advantages.

Modern Innovations and Technologies in Sandcasting

Modern innovations in sandcasting have significantly enhanced the efficiency, precision, and sustainability of this ancient metal casting process. One of the most notable advancements is the integration of computer-aided design (CAD) and computer-aided manufacturing (CAM) systems. These technologies allow for the creation of highly detailed digital models, which can be directly translated into patterns for sand molds, reducing human error and improving repeatability. Additionally, 3D printing has revolutionized pattern and core making, enabling the rapid production of complex geometries that were previously difficult or impossible to achieve with traditional methods. This not only accelerates prototyping but also supports small-batch and custom manufacturing Society of Manufacturing Engineers.

Another significant innovation is the use of advanced binders and additives in sand mixtures. These materials improve mold strength, surface finish, and collapsibility, while also reducing emissions and waste. Automated sand mixing and reclamation systems further enhance sustainability by recycling used sand, minimizing raw material consumption and disposal costs American Foundry Society.

Process monitoring and control have also evolved, with real-time sensors and data analytics enabling foundries to optimize pouring temperatures, mold filling, and cooling rates. This results in higher quality castings and reduced defect rates. Collectively, these innovations are transforming sandcasting into a more agile, precise, and environmentally responsible manufacturing process, ensuring its continued relevance in modern industry The Minerals, Metals & Materials Society.

Applications: Industries and Products Made with Sandcasting

Sandcasting is a versatile metal casting process widely adopted across numerous industries due to its cost-effectiveness, adaptability to complex geometries, and suitability for both small and large production runs. One of the primary sectors utilizing sandcasting is the automotive industry, where it is employed to manufacture engine blocks, cylinder heads, manifolds, and various transmission components. The process accommodates the intricate internal passages and robust structures required for these parts, making it indispensable for both prototyping and mass production (Ford Motor Company).

In the heavy machinery and agricultural equipment sectors, sandcasting is used to produce large, durable components such as housings, brackets, and gearboxes. Its ability to handle ferrous and non-ferrous alloys allows manufacturers to tailor material properties to specific operational demands (Caterpillar Inc.). The aerospace industry also leverages sandcasting for producing low-volume, high-complexity parts, including structural supports and specialized housings, where rapid prototyping and material flexibility are crucial (Boeing).

Beyond heavy industry, sandcasting finds applications in the art and architecture sectors, enabling the creation of custom sculptures, plaques, and decorative elements. The process is also prevalent in the production of plumbing fixtures, pump housings, and valves for the construction and utilities industries (Kohler Co.). Its adaptability to a wide range of metals and part sizes ensures that sandcasting remains a foundational technology in both traditional manufacturing and innovative product development.

Quality Control and Common Defects

Quality control in sandcasting is essential to ensure that the final cast products meet the required specifications for dimensional accuracy, surface finish, and mechanical properties. The process involves several inspection stages, including visual examination, dimensional measurement, and non-destructive testing methods such as X-ray, ultrasonic, or dye penetrant testing. These inspections help identify and address defects early, reducing scrap rates and improving overall yield.

Common defects in sandcasting include porosity, misruns, cold shuts, sand inclusion, and hot tears. Porosity, often caused by trapped gases or improper venting, results in small holes within the casting that can compromise strength. Misruns and cold shuts occur when the molten metal fails to completely fill the mold or when two streams of metal do not fuse properly, often due to low pouring temperatures or slow filling. Sand inclusions arise when loose sand particles become embedded in the casting, typically due to poor mold integrity or improper handling. Hot tears are cracks that form as the metal contracts during cooling, usually because of uneven cooling rates or inadequate mold design.

To minimize these defects, foundries implement rigorous process controls, such as optimizing sand composition, maintaining proper mold moisture, and controlling pouring temperatures. Regular maintenance of equipment and thorough training of personnel also play a crucial role in defect prevention. Adherence to industry standards, such as those set by the ASTM International and International Organization for Standardization (ISO), further ensures consistent quality in sandcast products.

Environmental Impact and Sustainability

Sandcasting, while a foundational process in metalworking, presents notable environmental challenges. The primary concern is the consumption and disposal of foundry sand. Each year, foundries generate millions of tons of spent sand, much of which ends up in landfills, potentially leaching contaminants such as heavy metals and chemical binders into soil and groundwater. Additionally, the extraction of virgin sand for casting contributes to habitat disruption and resource depletion, as sand is a finite resource increasingly under global pressure United Nations Environment Programme.

Air emissions are another significant issue. The combustion of organic binders and additives during the casting process releases volatile organic compounds (VOCs), particulate matter, and greenhouse gases, impacting both local air quality and contributing to climate change United States Environmental Protection Agency. Water usage and contamination can also occur, particularly during sand washing and cooling processes.

To address these impacts, the industry is increasingly adopting sustainable practices. These include recycling and reusing foundry sand in subsequent casting cycles or repurposing it for construction and agricultural applications, thus reducing landfill waste United States Environmental Protection Agency. Advances in binder technology, such as the use of inorganic or biodegradable binders, help minimize toxic emissions. Furthermore, process optimization and energy-efficient equipment are being implemented to lower the overall carbon footprint of sandcasting operations. These efforts are essential for aligning the industry with broader sustainability goals and regulatory requirements.

Future Trends in Sandcasting

The future of sandcasting is being shaped by advancements in digital technologies, materials science, and sustainability initiatives. One of the most significant trends is the integration of additive manufacturing, particularly 3D printing, into the sandcasting process. This allows for the rapid production of complex sand molds and cores, reducing lead times and enabling the creation of intricate geometries that were previously difficult or impossible to achieve with traditional methods. Companies are increasingly adopting 3D-printed sand molds to enhance design flexibility and accelerate prototyping cycles (voxeljet AG).

Another key trend is the use of advanced simulation software to optimize mold design and predict casting outcomes. These digital tools help foundries minimize defects, improve yield, and reduce material waste by simulating fluid flow, solidification, and thermal behavior before actual casting takes place (MAGMA GmbH). This data-driven approach is making sandcasting more efficient and cost-effective.

Sustainability is also driving innovation in sandcasting. Foundries are exploring the use of recycled and biodegradable binders, as well as closed-loop sand reclamation systems, to reduce environmental impact. These efforts align with broader industry goals to lower carbon emissions and promote circular economy practices (American Foundry Society).

As these trends converge, the sandcasting industry is poised for greater precision, efficiency, and environmental responsibility, ensuring its continued relevance in modern manufacturing.

Sources & References

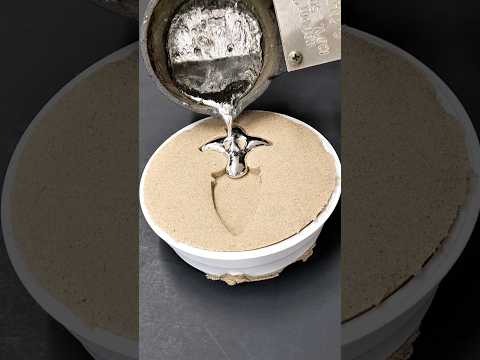

Amazing Sand Casting Technique. #sandcasting #art #heinrichsmade
